PYXIS + OPAL LIFT DISPLAYS
The Pyxis and OPAL ranges provide colourful, informative lift displays that combine essential lift information with multimedia content, including tenant information, building updates, events, news and advertising.
Pyxis adds cloud-based management, allowing content to be updated and managed remotely, while OPAL offers flexible programming options via USB, LAN or remote connection depending on the model. Cirrus can provide full-screen programming services, or your on-site technicians can manage updates themselves, with technical support available when needed.

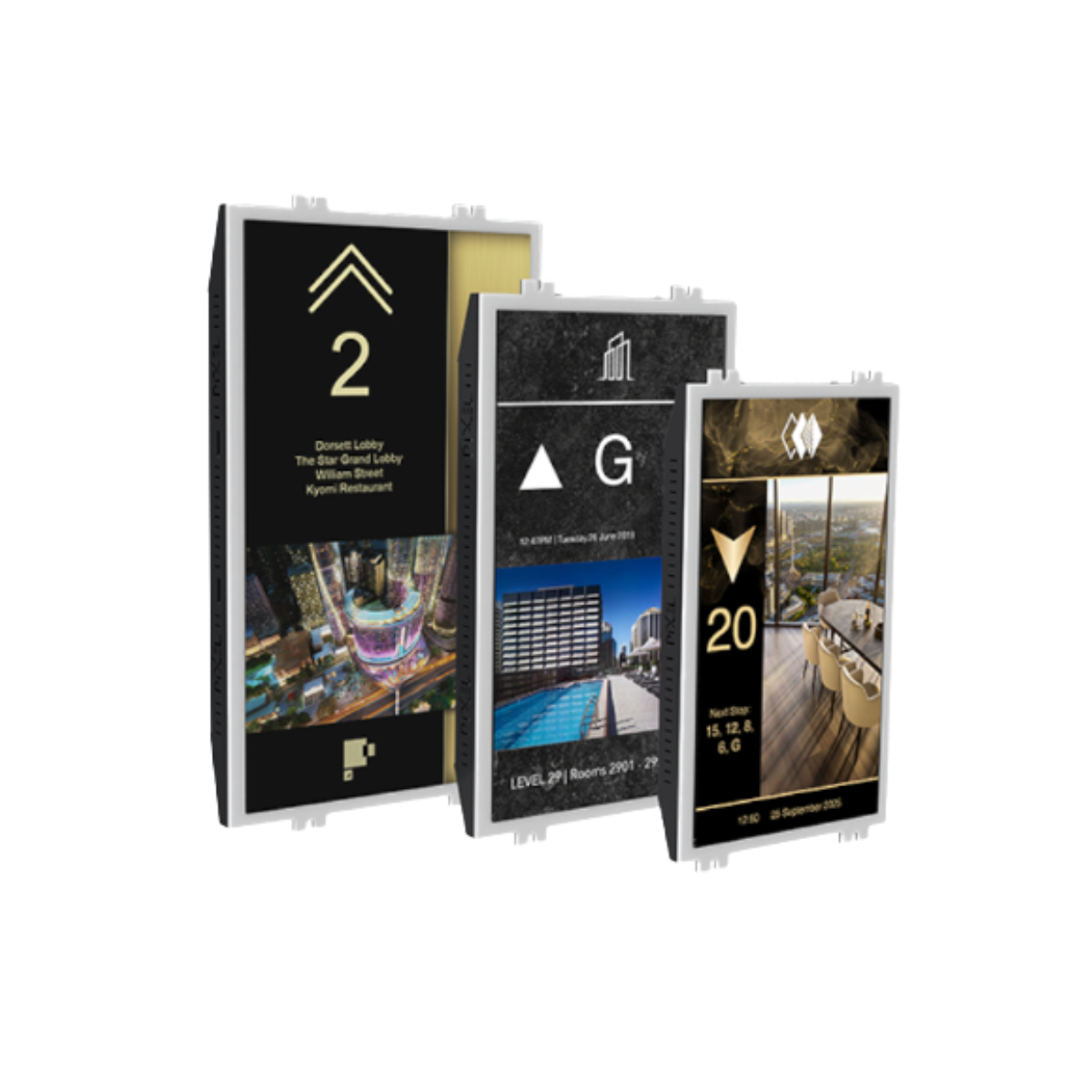

Pyxis Display
The Pyxis Display combines lift information and multimedia content in one display, with cloud connectivity allowing content to be managed and updated remotely.
Connected through the Pixel eLiioT Cloud Portal, Pyxis can be remotely programmed and monitored, with content and software updates managed without needing to access the display on site.
Pyxis can display floor position and direction, lift status messages, tenant information and logos, images and slideshows, as well as date and time. Built-in audio functionality also supports voice annunciation.
Displays can be installed in portrait or landscape orientation, making Pyxis suitable for use inside the lift car or on a landing.
Available in 10.4", 15", 15.6", 18.5" and 21.5" screen sizes, with Full HD options up to 1920 × 1080 resolution.
OPAL HD & HDM Surface Mount
The new OPAL High Definition surface mount displays feature 16:9 ratio screens that directly mount to any wall. With a resolution of 1920x1080p, these allow for maximum elevator content and media within a lift car or on a landing.
The OPAL software allows for a seamless design layout configuration and updates to the OPAL HD displays’ content, via USB or LAN directly connected from a pixel network or, by a remote wireless/internet connection from a connected WiFi router. The Opal HDM only allows updating vis USB and does not display any of the lift functions, such as direction arrows or levels.
Video playback, image slideshows and dynamic media options all offer opportunities to promote business, provide advertising space and building information.
The OPAL HD has built in audio functionality for your elevators’ voice annunciation, ensuring both compliance and functionality for your elevators audio needs.
Available in sizes - 15.6”, 18.6” and 21.5”, all 1920 x 1080 resolution
OPAL HD
The new OPAL High Definition, 16:9 ratio screens, with a resolution of 1920x1080p, allow for maximum elevator content and media within the lift car. These screens can be mounted either portrait or landscape in orientation.
The OPAL software allows for a seamless design layout configuration and updates to the displays’ content, via USB or LAN directly connected from a pixel network or, by a remote wireless/internet connection from a connected WiFi router.
Video playback, image slideshows and dynamic media options all offer opportunities to promote business, provide advertising space and building information.
The OPAL HD has built in audio functionality for your elevators’ voice annunciation, ensuring both compliance and functionality for your elevators audio needs.
Available in sizes - 15.6”, 18.6” and 21.5”, all 1920 x 1080 resolution

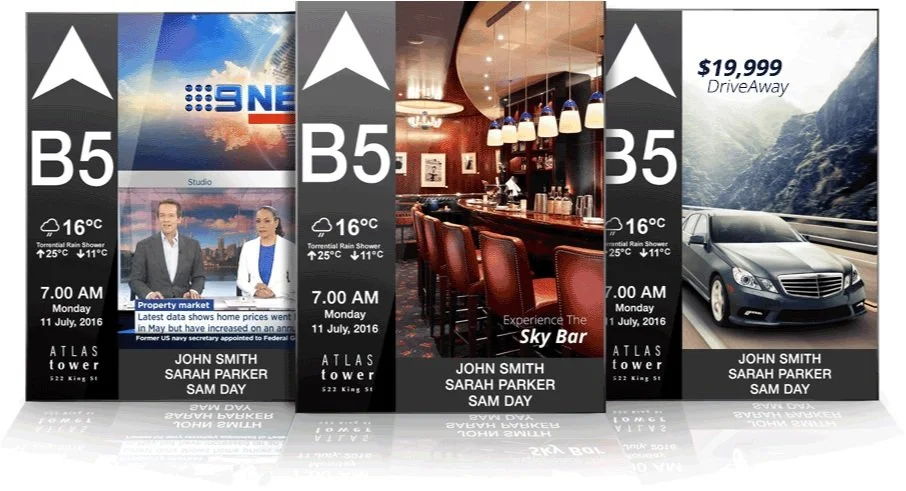

OPAL Plus
The OPAL Plus (SD) range provides a colourful and informative interface compared to conventional elevator indicators.
OPAL software allows for seamless design layout configuration and updates of the displays content, via USB or LAN directly connected from a pixel network, or by a remote wireless/internet connection from a connected WiFi router.
Video playback, image slideshows and dynamic media options all offer opportunities to promote business, provide advertising space and building information.
Built in audio functionality for your elevators’ voice annunciation, ensuring both compliance and functionality for your elevators audio needs.
Available in sizes - 10.4”(1024x768), 12”(800x600), 15”(1024x768), 19”(1280x1024).
