HONG JIANG DOOR DETECTORS

Hong Jiang’s premium 2D elevator door sensor uses 194 infrared beams and an innovative three-stage LED visual indicator system to help improve passenger safety. Its ultra-thin 9 mm profile, adjustable mounting and IP55-rated construction make it a practical choice for new installations, modernisations and maintenance projects.

Enquire

HJ/2D

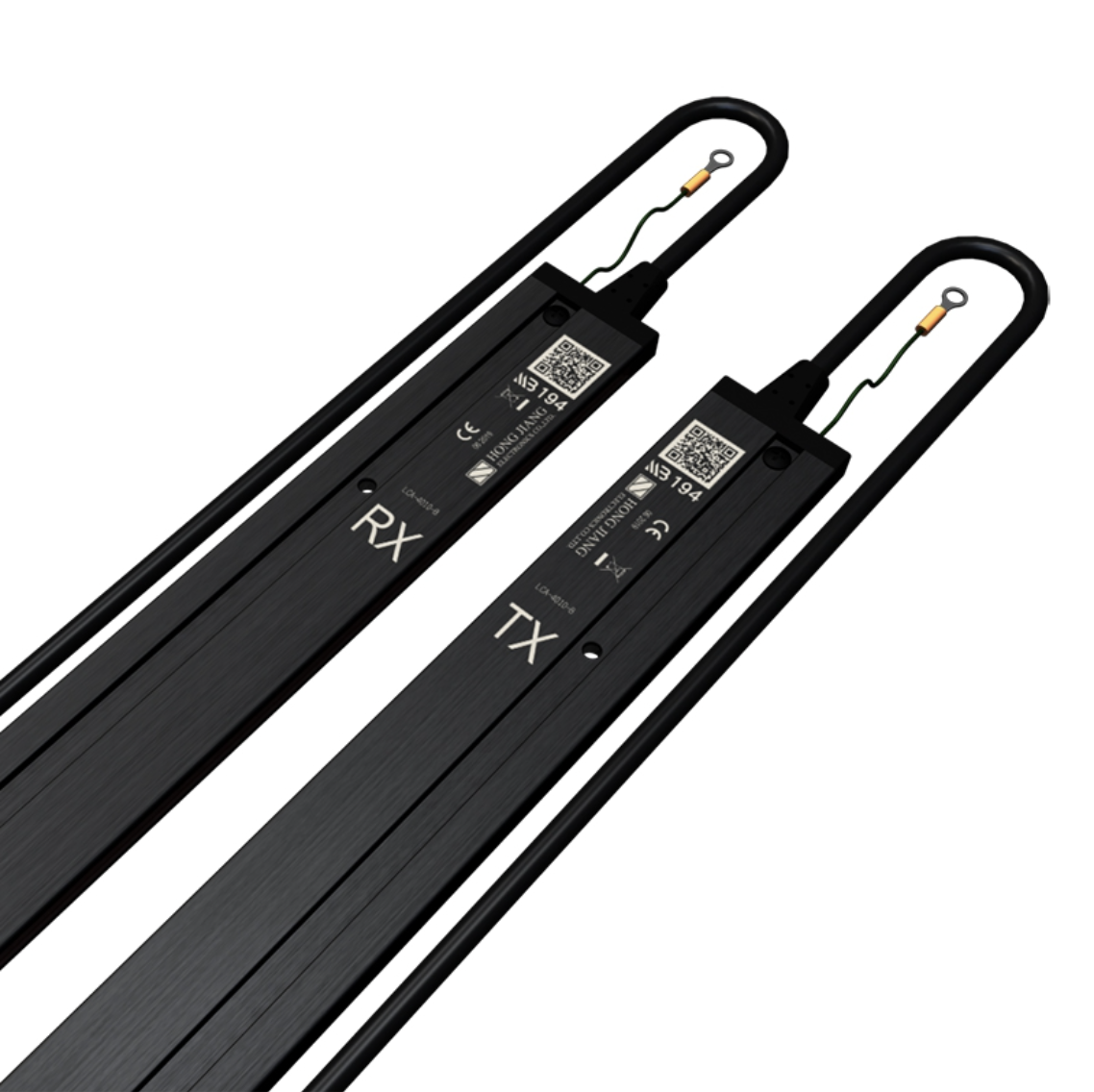

LCA Tri Stage LED 2D Detector with PS-1211-1 power supply.

Dimensions - 9mm wide x 2000mm high.

Features:

  • 2D infrared safety light curtain with 194 effective beams

  • Three-stage LED indicators for door opening, obstruction detection and door closing

  • Adjustable mounting for easier installation

  • Available with 85–265 VAC or 18–30 VDC power supply

  • Fast response time of 50 ms

  • IP55 dust and water resistance

  • Aluminium alloy housing with polycarbonate lens

  • Complies with EN81-20 requirements

  • Remote control for LED colour, brightness and on/off settings
